Multifunction Pharmaceutical Food Peanuts Lab Tablet Film Coating Machine
Product Description of Film Coating Machine
This machine is a special equipment suitable for water phase thin
film coating and organic film surface coating for Chinese and
western tablets, pills, etc. It is the interchangeable type coating
machine that improvement based on the
standard coating machine, one machine can achieve different batches
of production, widely used in the pharmaceutical, biological
scientific research and food industries.
Parameter of Film Coating Machine
| Items Model | SED-150D |
| Capacity | 150kg/ Batch |
| Speed of Drum (RPM) | 2-20 |
| Power of Motor (KW) | 2.2kw |
| Feeding port diameter | 480 mm |
| Overall size | 1700×1300×2100mm |
| Drum mesh diameter | 3mm |
| Air source (provided by yourself) | 0.8 m3/min pressure: 0.4-0.8 Mpa |
Performance and Characteristic of Film Coating Machine
1. It adopts a new microcomputer and temperature module control
system, and the touch screen adopts Siemens German. It has the
advantages of graphic display, simple operation, high efficiency,
energy saving, and easy for cleaning, which meets the requirements
of GMP.
2. It consists main machine, high efficiency hot air filtration
blower, air exhauster and spray device.
3. The whole process is controlled by microcomputer programmable
system. The control system has application program, multi
selectivity of operation mode, drive control and multi display
functions.
4. The coating process is proceeded in a closed environment to
prevent dust and spray from splashing.
5. The drive system adopts explosion-proof reduction motor and
variable frequency stepless speed regulation.
6. The high-efficiency filtering hot air fan is used for the main
engine after primary, medium and high-efficiency filtering and
heating. The air purification meets the cleaning requirements of
100000 level. The dust removal exhaust fan can directly exhaust
outdoors to avoid affecting the central air conditioning and save
energy.
7. The spray gun adopts Japanese Anestiwata spray gun, which has
good atomization effect, without nozzle blockage, adjustable spray
amount and spray angle, simple structure and can be cleaned easily.
Working Principle of Film Coating Machine
Under the action of the streamlined deflector in the clean and
airtight rotating drum, Su Rui keeps making complex trajectory
movements. During the movement, according to the technological
process and reasonable technological parameters, the
coating medium is automatically sprayed, and at the same time in
the negative pressure state The hot air is supplied from the
bottom, and the hot air is discharged from the bottom of the core
layer through the core, so that the coating medium sprayed on
the surface of the core can be quickly and evenly dried to form a
firm and smooth surface film.

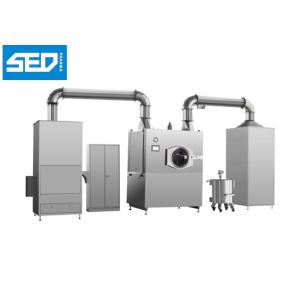

Product Show of Film Coating Machine
Application of Film Coating Machine
Tablet coating machine is widely used in pharmaceutical, chemical,
food, scientific research institutes and hospitals for tablets,
dragees, polished and calendered food. Polished sugar-coated
tablets have a glossy appearance. The surface sugar
crystallizes to form a complete cured coating, which can prevent
the chip from oxidative deterioration, moisture, volatilization,
and cover up the bad flavor of the chip. It can be used with
frequency converter. Can be matched with dust removal system. It
can be made into a fully enclosed type, equipped with a spray gun
system, in line with GMP requirements.
