    Mineral Water Plant 5L 10L Liquid Filling Machine Washing Filling Capping Labeling Packing

    Ask Lasest Price
    Brand Name : SED Pharma
    Model Number : SED-WFC
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T,L/C, MoneyGram,Cash
    Supply Ability : 40 working days after receiving the deposit
    Delivery Time : 30 Sets per month
    • Product Details
    • Company Profile

    Mineral Water Plant 5L 10L Liquid Filling Machine Washing Filling Capping Labeling Packing

    Mineral Water Plant 5L 10L Liquid Filling Machine Washing Filling Capping Labeling Packing

    Product Description of Liquid Filling Machine

    Filling-Plugging-Capping Machine utilizes the latest Mitsubishi or Schneider technology in its PLC control system, and is capable of reaching an output of 40-60 bottles per minute.


    Perfect for many products like Eyedroppers, e-Cigarette and so on. It can be also used for droppers and sprays with only filling and capping.


    Easy to be connected into a production line with Bottle Unscramber, Labelers and Collect turntable to be a , the detailed informaiton a whole line please visit and click Production Line.


    Product Parameters of Liquid Filling Machine

    Capacity18000BPH (500ml)
    Bottle Height120~310mm
    Bottle Diameterф50~ф96mm
    Mouth Diameter26mm~40mm
    Bottle TypePET bottle
    CapHDPE Cap
    Washing Head40pcs
    Washing Time>2second
    Filling Heads40
    Filling Temperature85-90℃
    Filling Pressure0.2~0.4Mpa
    Filling Valve Flow120~150ml/s
    Filling PipeSUS304, High temperature affordable
    Capping Head10
    Capping Strength0.6~2.8Nm(adjustable)
    Main Power7.5 KW
    Air Consumption1m 3/min(0.6MPa)
    Sterilized Water Consumption1.2m3/h(0.2-0.25Mpa)
    Overall Dimension4300×3300×2900mm
    Weight9500Kg

    Advantages of Liquid Filling Machine

    Mitsubishi or Schneider PLC control system accessed through an easy-to-use touch screen.

    99% filling precision.


    All parts in contact with filling material are made of stainless steel 316L to meet cGMP standard.

    No-bottle-no-filling and no-plug-no-cap mechanisms included.

    Variable speed drive ensures a smooth operation.

    An optional diving nozzle or a bottom-up nozzle are available.

    The machine is easily adjusted from one bottle size to another.

    Custom design is available.


    Products Show of Liquid Filling Machine​

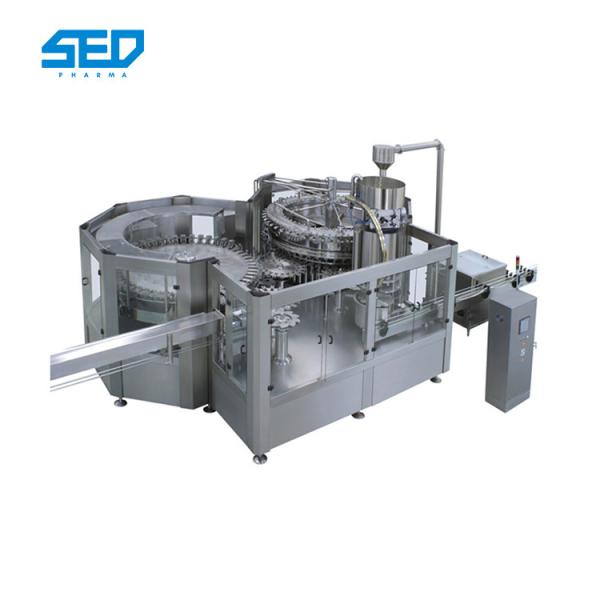

    Mineral Water Plant 5L 10L Liquid Filling Machine Washing Filling Capping Labeling Packing

    FAQ

    Q1:Are You A Factory or A Trading Company

    A: We Provided Perfect OEM and After-sale Service.

    Q2:Where is Your Factory? How Can I Visit Your Factory?

    A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan

    Q3:Can You Send Me the Video To Show The Machine Works?

    A:Certainly, We Have Made Video of Every Machine

    Q4:How Can I Know Your Machine Is Designed For My Product

    A:You Can Send Us Samples of Your Product and We Test It On Machine


    Q5:How Can I Pay My Order?

    A:Usually We Accept L/C, D/A, D/P, T/T, , MoneyGram,Cash Paying Methods

    Q6:Do you Have a Ce Certificate?

    A:For Every Model of Machine, It Has a CE Certificated

    Q7:What about install?

    A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
