    Durable 100L Dry Powder Ribbon Blender Mixer With High Speed

    Ask Lasest Price
    Brand Name : SED Pharma
    Model Number : SED-100CH
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T,L/C, MoneyGram,Cash
    Supply Ability : 40 working days after receiving the deposit
    Delivery Time : 30 Sets per month
    • Product Details
    • Company Profile

    Durable 100L Dry Powder Ribbon Blender Mixer With High Speed

    Durable 100L Dry Powder Ribbon Blender Mixer With High Speed

    Technical Parameters of Ribbon Blender Mixer

    Volume (L)100
    Power of agitation motor (kw)2.2
    Rotation speed of agitation (r/min)24
    Power of Inclined motor (kw)0.55
    Input(kgs)50
    Weight (kg)300
    Overall dimensions (mm)1400×500×1000

    Working Principle of Ribbon Blender Mixer


    S type agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly.


    Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homogeneous mixing.


    Main Features of Ribbon Blender Mixer

    1. It consists of U shape container, spiral belt mixing blade and transmission parts.


    2. The U-shaped long cylinder structure ensures the small resistance movement of the mixture (powder, semi-fluid) in the cylinder.


    3. The positive and negative rotating screw rods are installed on the same horizontal axis to form a low power and high efficiency mixing environment. The spiral ribbon blades are usually made into two or three layers.


    The outer spiral conveys the material from both sides to the center. The inner spiral conveys the material from the center to both sides, which makes the material form more eddies in the flow. The mixing speed is quickened and the mixing uniformity is improved.


    4. Horizontal spiral belt mixer is a new type of mixing equipment with high efficiency, high uniformity, high loading coefficient, low energy consumption, low pollution and low crushing.

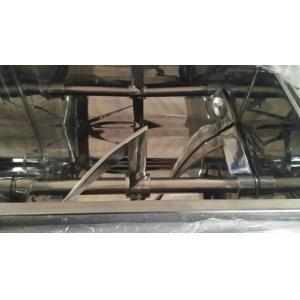

    Product Show of Ribbon Blender Mixer​

    Durable 100L Dry Powder Ribbon Blender Mixer With High Speed


    Application of Ribbon Blender Mixer
